AT-802A

For high production profitability

The AT-802A is the world’s largest single engine ag aircraft, and its popularity is legend in high production agriculture.

AT-802A

With a payload of 9,249 lbs. (4.195 kg) and an 800-gallon hopper, the AT-802A stands alone. No other single-engine ag plane offers more working capacity. With its power, speed and payload; its long feature list and array of options, the AT-802A offers attractive new income opportunities for operators. You’ll work faster, stay longer over the field and complete more jobs in a single load. With the capacity to do the work of several smaller planes, the AT-802A provides a one-pilot operation with maximum productivity.

AT-802A Specifications

Engine Type
P&W PT6A-65AG
Engine SHP
1,295 @ 1,700 RPM
Propeller
Hartzell HC-B5MP-3F/M11276NS
Take-off Weight
16,000 lbs (7.257 kg)
Landing Weight
16,000 lbs (7.257 kg)
Empty Weight with Spray Equipment
6,751 lbs (3.062 kg)
Useful Load
9,495 lbs (4.306 kg)
Hopper Capacity
800 US gal (3.028 L)
Fuel Capacity
254 US gal (961 L)
Wing Span
59.2 ft (18,04 m)
Wing Area
401 sq ft (37,29 m²)
Main Wheel Size
11.00-12
Tail Wheel Size
17.5 x 6.25-6

AT-802A Performance

Cruise Speed at 8,000 ft (2.438 m)
191 mph (166 kts)
Working Speed (Typical)
130-160 mph (113-139 kts)
Range - Economy Cruise at 8,000 ft (2.438 m)
610 mi (982 km)
Stall Speed - Flaps Up
107 mph (92 kts) at 16,000 lbs (7.257 kg)
Stall Speed - Flaps Down
91 mph (79 kts) at 16,000 lbs (7.257 kg)
Stall Speed as Usually Landed
63 mph (54 kts)
Rate of Climb
780 fpm at 16,000 lbs (7.257 kg)
Take-off Distance
2,000 ft at 16,000 lbs (7.257 kg)

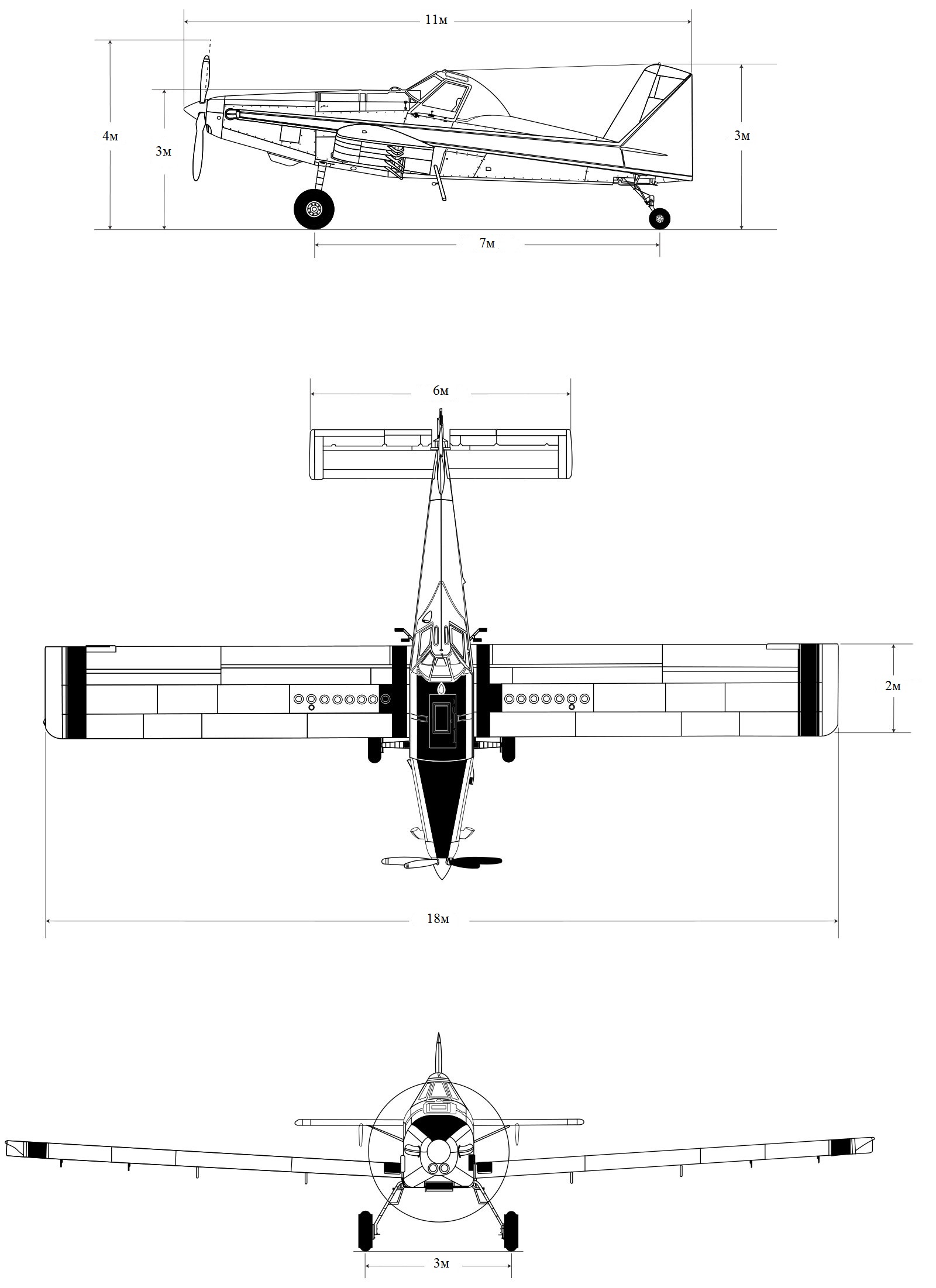

AT-802A Dimensional Drawings

AT-802A: Dimensional Drawings
